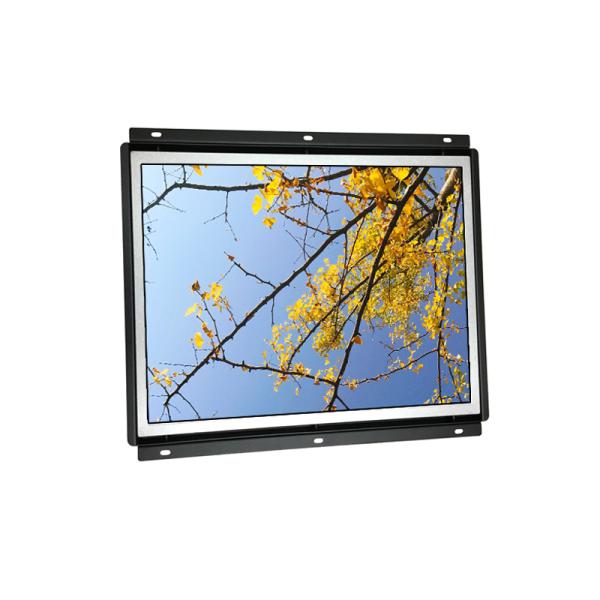

Digital 15 inch Industrial Open Frame LCD Screen with 1500nits

Product Categories

AXNEW DISPLAY TECHNOLOGY CO.,LTD

Contact Now

Name: Digital 15 inch Industrial Open Frame LCD Screen with 1500nits
Brand: AXNEW
Price: 150 USD

Brand Name : AXNEW

Model Number : AXD-15OPN2P1-VH2

Certification : CE FCC CCC ROHS

Place of Origin : China

MOQ : 10 pieces

Price : US$150-200/pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2500pcs/month

Delivery Time : 5-8 working days

Packaging Details : 5 pcs/carton

Name : 15 inch High Brightness Infrared touch monitor

Resolution : 1024x768

Brightness : 1500nits

Wide viewing angle : 80/80/75/75 ( 160/150)

Operating Temp. : -20-70 degrees

LED backlight : 50,000 hours (min)

Touch type : IR touch with IP65 Front bezel

Protective glass : anti-vandal with anti-glare treatment

Contact Now

Digital 15 inch Industrial Open Frame LCD Screen with 1500nits

Display Specifications
Display	15" Color TFT industrial open frame display
Model Name	AXD-15OPN2P1-VH5
Active Display Area (mm)	304.1(H)x304.1(V)
Pixel Pitch (mm)	0.297(H)x0.297(V)
Resolution (Pixel)	XGA (1024X768)16.2MColor
Brightness (CD/m^2)	1500nits
Contrast Ratio	600:1
Viewing Angle (CR >=10)	160/140
Power consumption	19.3W typical, normal operation
Touch Screen	Resistive;RS232/USB(Optional)
OSD Control	On the back side
I/O Connectors	1x12v,1XVGA,DVI-D
Power Input	DC 12V,4A48W
Mechanical Specifications
Construction	Steel Metal chassis & Galvanized / Black color
Dimensions	357.3 x 292.0x 42.8 (mm)
Mounting	Edge fixing holes
Power source	AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature	-20~70℃
Storage Temperature	-30~80℃
Rating	Facilitate installation of the demolition,solid portfolio
Ordering Information	15” industrial open frame high brightness with VGA input
